It’s no surprise the CT Sounds Meso components have been a best-selling product of CT Sounds for years. The Meso 6.5” 3-way component speakers are custom engineered to bring you the highest tonal accuracy by providing a well-balanced experience of rich tones from powerful mid-bass to snappy highs.
The 6.5-inch component woofer features a fiberglass cone and nitrile butadiene rubber surround which allows the 6.5 component speaker to deliver top notch sound quality and mid-bass to your vehicle. The 3.5-inch midrange speaker features a fiberglass cone, nitrile butadiene rubber surround, and a neodymium motor assembly which will have your music heard from several blocks away. To finish the equation, the 1-inch silk dome tweeters are suspended in ferrofluid with a N38H motor assembly to provide an accurate reproduction of your favorite tracks. These 25mm silk-dome tweeters are housed in a brushed aluminum flush mount bracket to keep your ride looking sharp.
If you want to play your music loud enough for the entire neighborhood to hear, then look no further than the Meso 6.5” 3-Way Component Speaker Set.
Quick Facts:
RMS Power:
250 Watts (Pair)
MAX Power:
500 Watts (Pair)
Speaker Type:
6.5" 3-Way Component
Single 4-Ohm
Specs
6.5” 3-Way Car Component Speaker Set
Power per speaker set: 125W RMS | 250W MAX
Total system power: 250W RMS | 500W MAX
Voice Coil Configuration: Single 4-Ohm
1.4” EISV Voice Coil
Fiberglass Cone
Nitrile Butadiene Rubber Surround
Aluminum Basket
25mm Silk-Dome Tweeter

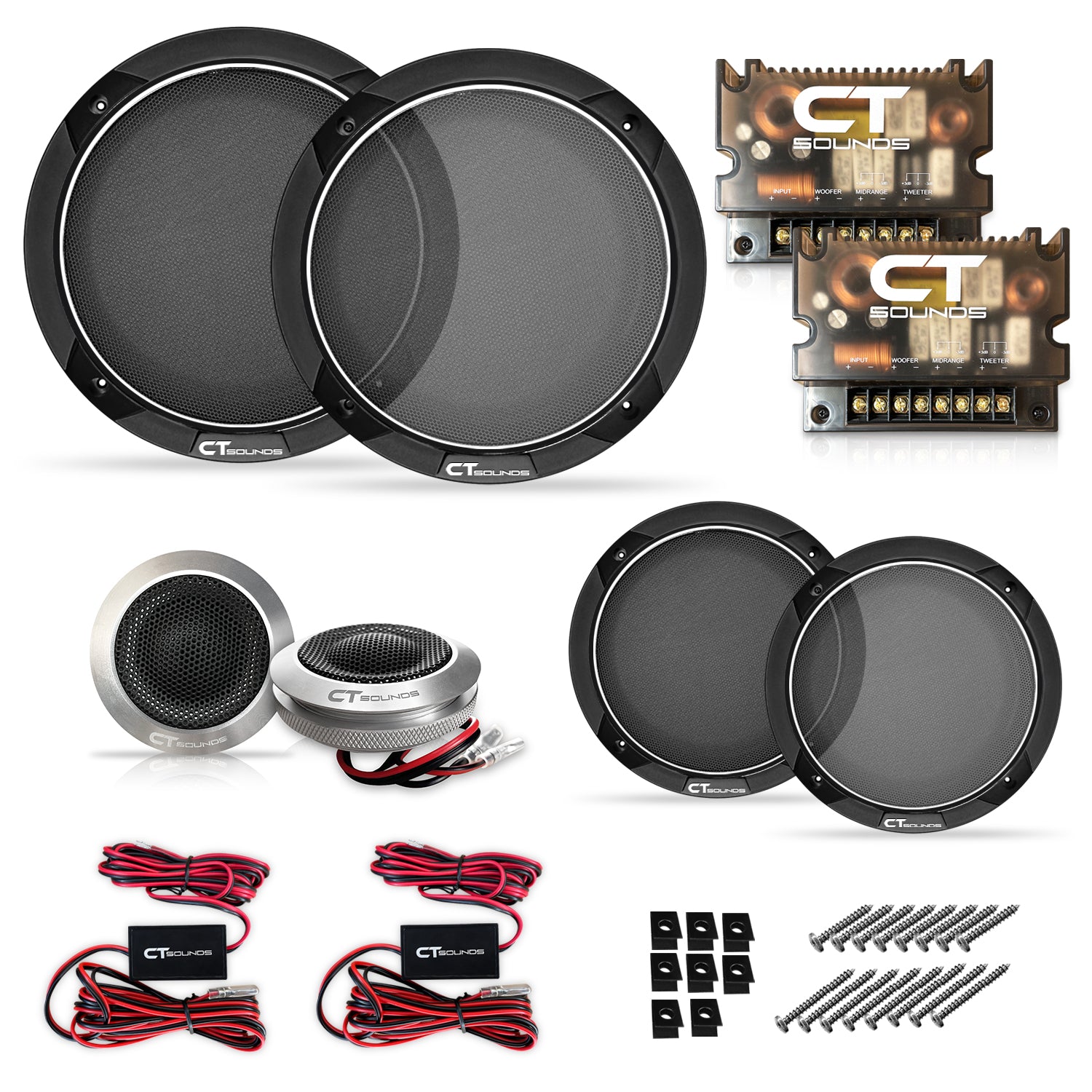

3-Way Component Speaker Set Includes:
(2) 6.5” Midrange Woofers
(2) 3.5” Neo Midrange Woofers
(2) 25mm Silk-Dome Tweeters
(2) 18 dB Passive Crossover Networks
Screws and Mounting Brackets
Premium Wire For Easy Installation
Speaker Grilles for 6.5” and 3.5” Midrange Woofers

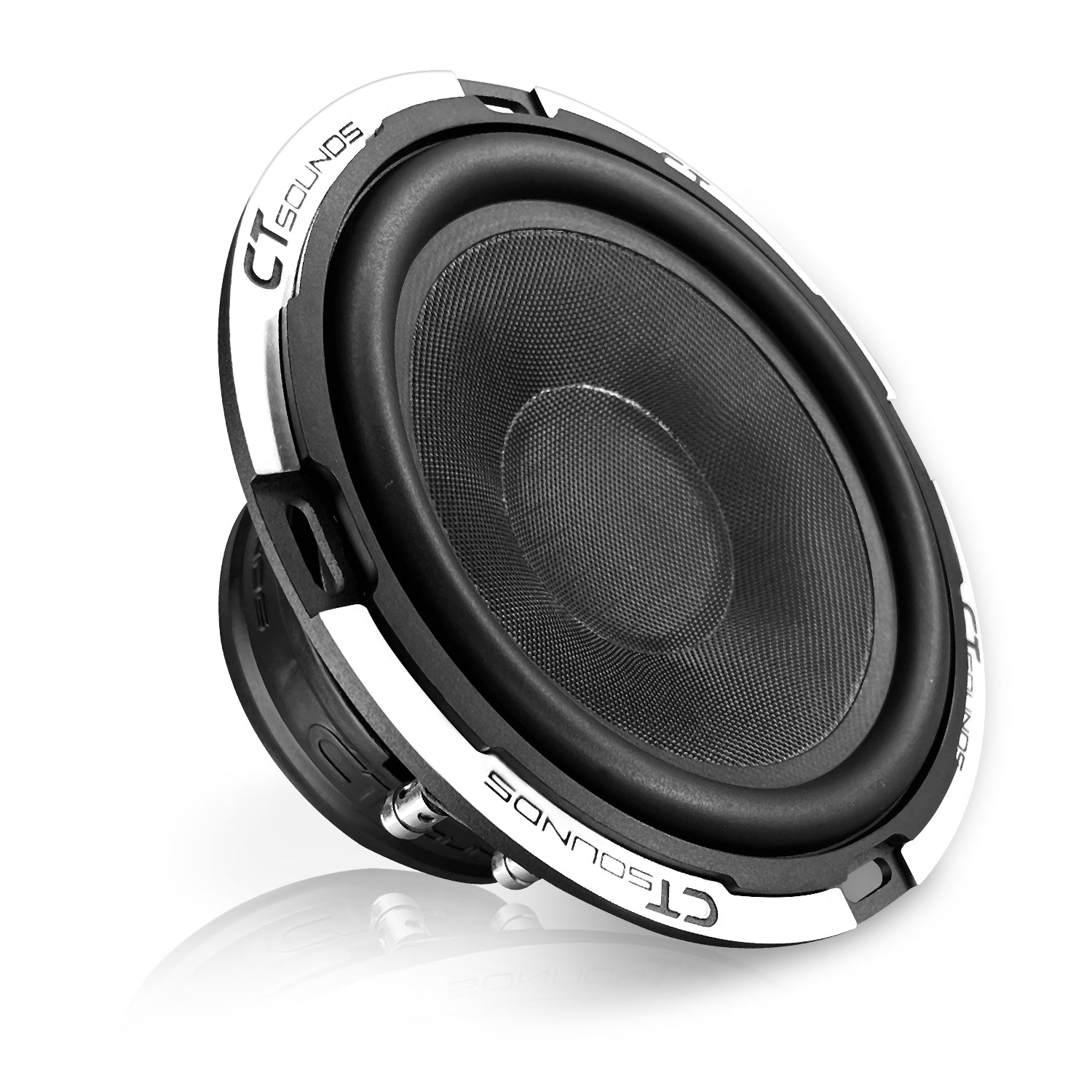

6.5" Woofer Specifications:
Voice Coil Size:
1.4"
Sweep Voltage:
11 V
Output SPL (@1w/1m):
89 dB
X-Over Point:
2.8 kHz
Resonant Frequency:
65 Hz
Frequency Response:
50 Hz - 4.5 kHz
Magnet Weight:
21 Oz
Magnet Type:
Ferrite

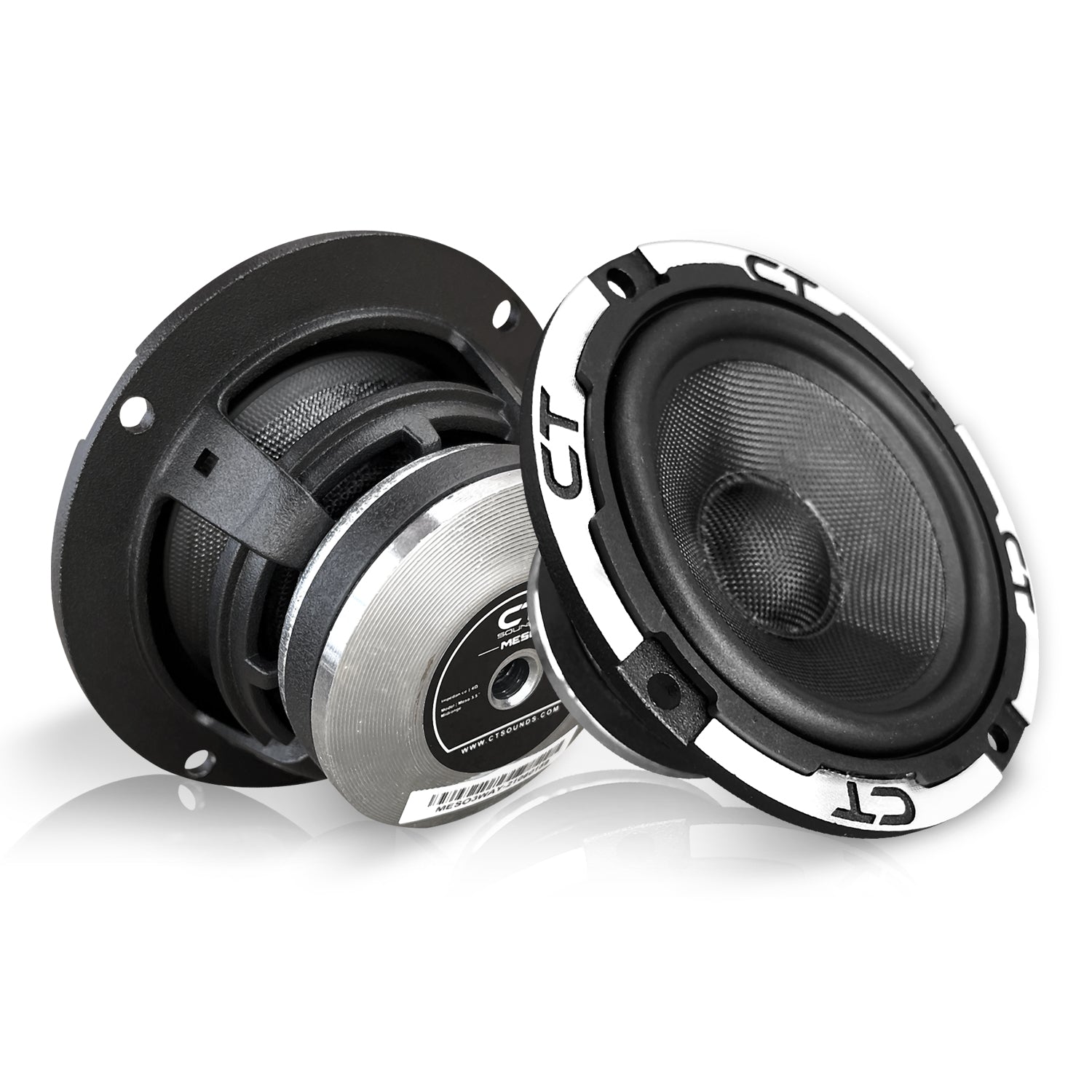

3" Mid-range Woofer Specifications:
Power per Speaker:
30W (RMS) | 60W (MAX)
Total System Power:
60W (RMS) | 120W (MAX)
Output SPL (@1w/1m):
88 dB
X-Over Point:
2.5 kHz
Resonant Frequency:
65 Hz
Frequency Response:
300 Hz ~ 1500 Hz
Magnet Weight:
1.9 Oz
Magnet Type:
Neo
Tweeter Specifications:
Sweep Voltage:
2.8 V
Output SPL (@1w/1m):
90 dB
Frequency Response:
1500 Hz ~ 20 kHz
Tweeter Size:
25mm
Tweeter Type:
Silk-dome
Magnet Type:
Neo

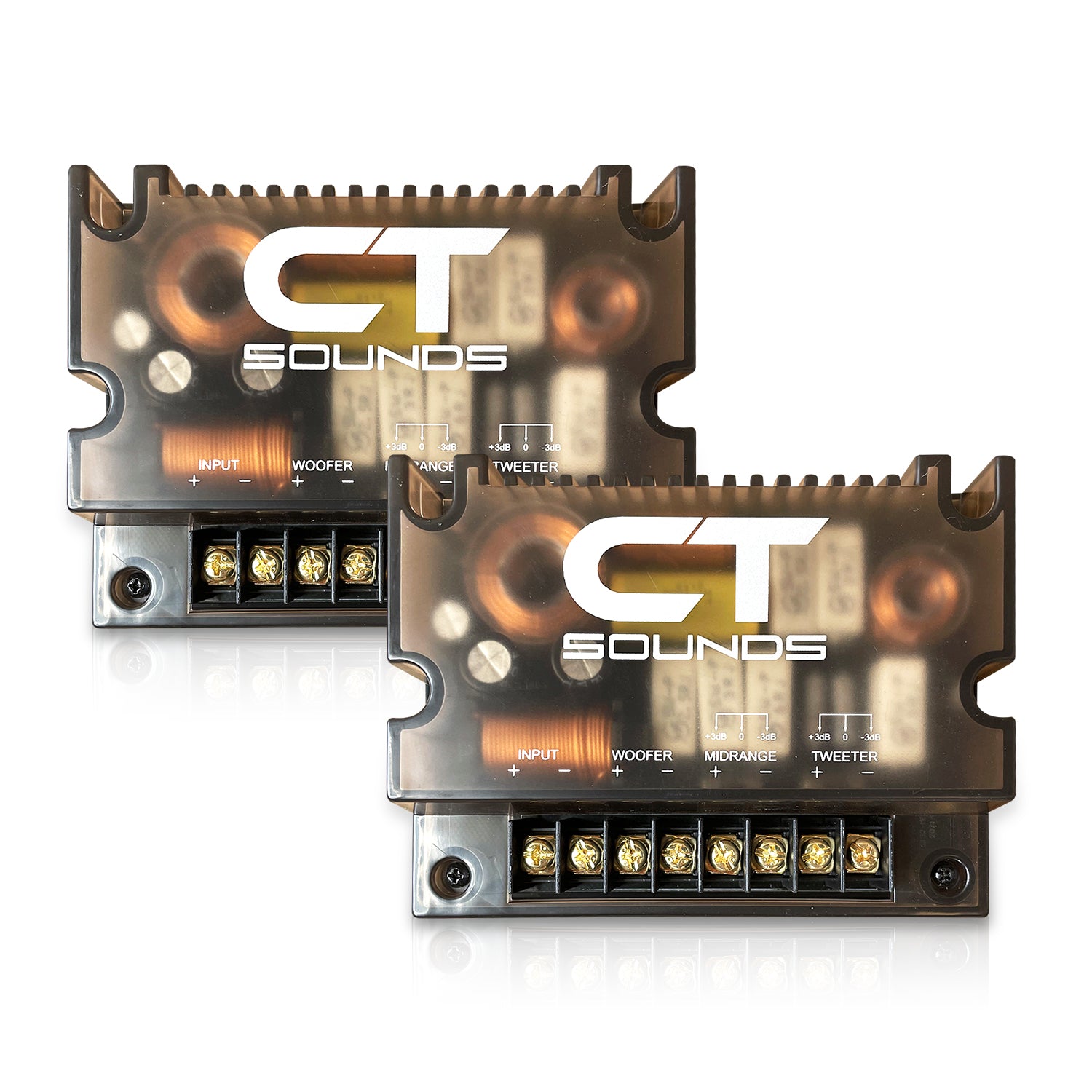

Crossover Specifications:
Crossover Circuit:
5.6 μF capacitor / 100 V
Filter for Woofer:
12 dB
Filter for Mid-range:
18 dB
Filter for Tweeter:
12 dB
Dimensions
Complete Your Install
CT-150-4D // 1000 Watts RMS 4-Channel Amplifier
16 Reviews
$349.99
$199.99
4 Gauge 1250 Watt Amplifier Wiring Kit (CCA)
16 Reviews
$44.99
$34.99
Wiring Diagram
3-Way Crossover
What’s Included
RP-MESO-6-5-WOOFER
$99.99 x 2 = $199.98
6.5” Midrange Woofer
$119.99
Quantity: 2
*Not Sold Separately
RP-MESO-3-5-MIDRANGE
$49.99 x 2 = $99.98
3.5” Neo Midrange Woofer
$69.99
Quantity: 2
*Not Sold Separately
RP-MESO-25-TWT
$24.99 x 2 = $49.98
1” Silk-Dome Tweeter
$34.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
RP-3WAY-CROSSOVER
$19.99 x 2 = $39.98
18 dB Passive Crossover Network
$24.99
Quantity: 2
*Not Sold Separately
View All
FAQ’s
What’s the final ohm load to the amplifier when all 3 speakers are hooked up to the crossover?
The final ohm load is 4-ohm per crossover when you wire the “+” crossover terminal to the “+” amplifier terminal and the “-” crossover terminal to the “-” amplifier terminal.
What size wire is recommended for these speakers?
You can use the speaker wire that is included with the set.
What crossover setting do you recommend (full range or high pass filter)?
The speaker set includes (2) passive crossovers so you don't need to set your high pass filter and can run your amplifier in “full range”. The crossover will do all the work and send the audio signals to the appropriate drivers for optimal sound performance.
When will my order ship?
All orders placed before 4 PM CST ship same-day. Orders placed after 4 PM CST will ship the following business day.
What is CT Sounds’ return policy?
We stand behind our products and if you are not 100% satisfied with your purchase you may return it within 30 days of delivery. Upon receiving your items, we request 2 business days to inspect the item and process your return. You can start a return by clicking the link: Return an Item
What is CT Sounds’ warranty policy?
All purchases from www.ctsounds.com come with a 1-Year Limited Warranty. To start a warranty process, please open a claim here: Start a Warranty Claim
