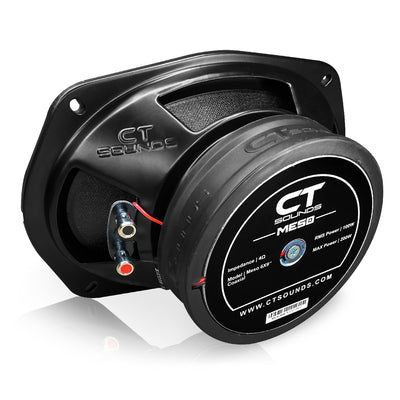

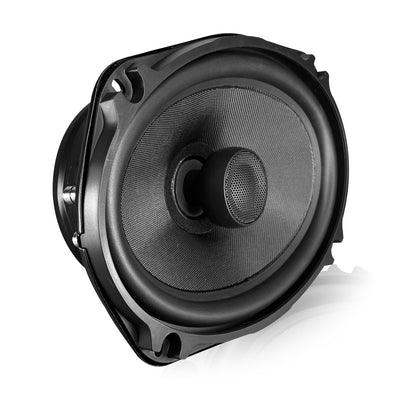

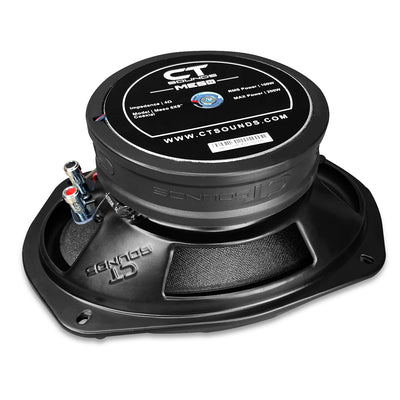

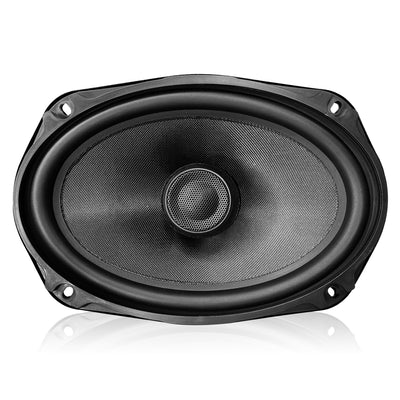

MESO-6X9-COX // 200 Watts RMS 6x9 Inch Car Coaxial Speakers, Pair
The CT Sounds Meso 6x9” coaxial speakers are full-range 2-way coaxial speakers designed to be the perfect complement to any system looking for better sound. Sold as a pair, these 6 by 9 car coaxial speakers were engineered with a high-quality fiberglass cone and nitrile butadiene rubber surround creating a crisp sound that will work with any sound stage. The beefy 33 Oz ferrite magnet provides 100W RMS of power handling per speaker and allows these coaxial speakers to work in conjunction with most 4-channel amplifiers.
Customer’s rave about the performance of the meso series speakers for many reasons and it’s no surprise why. CT Sounds’ attributes most of the success to the engineering that went into the attached silk-dome tweeters. Each tweeter features a CCAW wire voice coil and a neo magnet which allows these 2-way 6x9 inch car speakers to offer a great high frequency range that will recreate vocals and other high frequencies noises like never heard before. Don’t just hear sound, travel to the mesosphere and experience it.
| Quick Facts: | |
| RMS Power: | 200 Watts (Pair) |
| MAX Power: | 400 Watts (Pair) |
| Speaker Type: | 6x9" 2-Way Coaxial |
| Voice Coil Configuration: | Single 4-Ohm |
- 6x9” 2-Way Car Coaxial Speaker Set
- Power per speaker: 100W RMS | 200W MAX
- Total system power: 200W RMS | 400W MAX
- Voice Coil Configuration: Single 4-Ohm
- 1.5” EISV Voice Coil
- Fiberglass Cone
- Nitrile Butadiene Rubber Surround
- Nomex Blend Spider Pack
- Durable Stamp Steel Basket
- 25mm Silk-Dome Tweeter
- Push Terminals for Speaker Connectivity

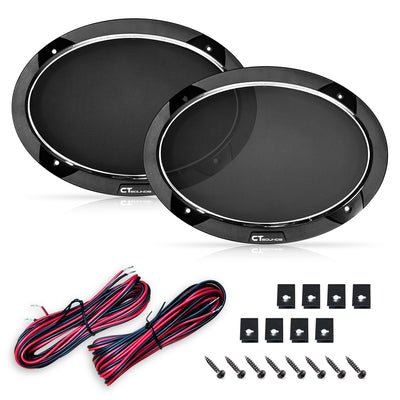

- Signature CT Sounds Silver Chrome Plated Ring Speaker Grilles Included
- Premium Wire and Screws Included for Easy Installation
| Woofer Specifications: | |
| Voice Coil Size: | 1.5" |
| Sweep Voltage: | 13.5 V |
| Output SPL (@1w/1m): | 91 dB |
| X-Over Point: | 4.0 kHz |
| Resonant Frequency: | 55 Hz |
| Frequency Response: | 40 Hz - 20 kHz |
| Magnet Weight: | 33 Oz |
| Magnet Type: | Ferrite |
| Tweeter Specifications: | |
| Sweep Voltage: | 2.8 V |
| Output SPL (@1w/1m): | 92 dB |
| Frequency Response: | 1500 Hz ~ 20 kHz |
| Tweeter Size: | 24mm |
| Tweeter Type: | Silk-dome |
| Magnet Type: | Neo |
| Crossover Specifications: | |
| Crossover Circuit: | 3.3 μF capacitor / 50 V |
| Filter for Tweeter: | 6 dB |
| Mounting Specifications: | |
| Overall Diameter: | 9.10" x 6.48" |
| Cutout Diameter: | 8.43" x 5.89" |
| Magnet Diameter: | 4.96" |
| Magnet Height: | 1.22" |
| Mounting Depth: | 3.39" |
| Overall Height: | 3.58" |
